Choosing the right electric wire for home projects is crucial for ensuring safety, efficiency, and longevity of your electrical system. Here are the key factors to consider when selecting electric wire:
1. Wire Gauge
- Definition: Wire gauge refers to the diameter of the wire. The American Wire Gauge (AWG) system is commonly used.
- Importance: The gauge determines the amount of current the wire can safely carry. Lower numbers indicate thicker wires, which can handle more current.
- Common Gauges:
- 14 AWG: Suitable for general lighting and outlets on a 15-amp circuit.
- 12 AWG: Used for outlets and appliances on a 20-amp circuit.
- 10 AWG: For high-power appliances like water heaters and air conditioners on a 30-amp circuit.
- 8 AWG and thicker: For heavy-duty appliances and subpanels.
2. Wire Material
- Copper: Most common due to its excellent conductivity and flexibility. It is more expensive than aluminum but more reliable.
- Aluminum: Lighter and less expensive than copper, but less conductive and more prone to oxidation and thermal expansion issues. Often used for service entrance and large feeders.
- Copper-Clad Aluminum: Combines the conductivity of copper with the lower cost of aluminum. Suitable for certain applications but less common.
3. Wire Insulation
- Types of Insulation:
- THHN/THWN: Thermoplastic High Heat-resistant Nylon-coated, suitable for dry or wet locations.
- UF-B: Underground Feeder cable, suitable for direct burial.
- NM-B (Romex): Non-metallic sheathed cable, commonly used for indoor residential wiring.
- MC Cable: Metal-clad cable, used in commercial and industrial settings for its extra protection.
4. Wire Color Coding
- Black/Red: Hot wires, carrying current to outlets or fixtures.
- White: Neutral wires, returning current to the panel.
- Green/Bare Copper: Ground wires, providing a safe path for electricity in case of a fault.
- Blue/Yellow: Often used for switch legs and other applications in complex circuits.
5. Voltage Rating
- Ensure the wire’s insulation is rated for the voltage of your circuit. Most residential wires are rated for 600 volts.
6. Environment
- Consider the environment where the wire will be used:
- Dry Locations: Standard NM-B cable is sufficient.
- Wet or Damp Locations: Use THWN or UF-B cable.
- Underground: UF-B or conduit with THWN wires.
- Exposed to Physical Damage: Use armored cable (MC) or conduit for extra protection.
7. Current Load and Circuit Length
- Ensure the wire gauge matches the current load requirements of your appliances and the length of the circuit to prevent voltage drop.
8. Code Compliance
- Adhere to local building codes and the National Electrical Code (NEC) for all installations. These regulations ensure safety and standardization.
Examples of Applications:
- Lighting Circuits: Typically use 14 AWG wire on a 15-amp breaker.
- Kitchen Appliances: Use 12 AWG wire on a 20-amp breaker for outlets serving small appliances.
- Electric Dryer: Requires 10 AWG wire on a 30-amp breaker.
- Subpanel Feeders: Often require 8 AWG or thicker wire depending on the amperage.
Installation Tips and Safety Measures
When working on home electrical projects, it’s essential to follow proper installation practices and safety measures to avoid hazards such as electrical shocks, fires, and damage to appliances. Here are some key tips and safety guidelines:
1. Turn Off Power

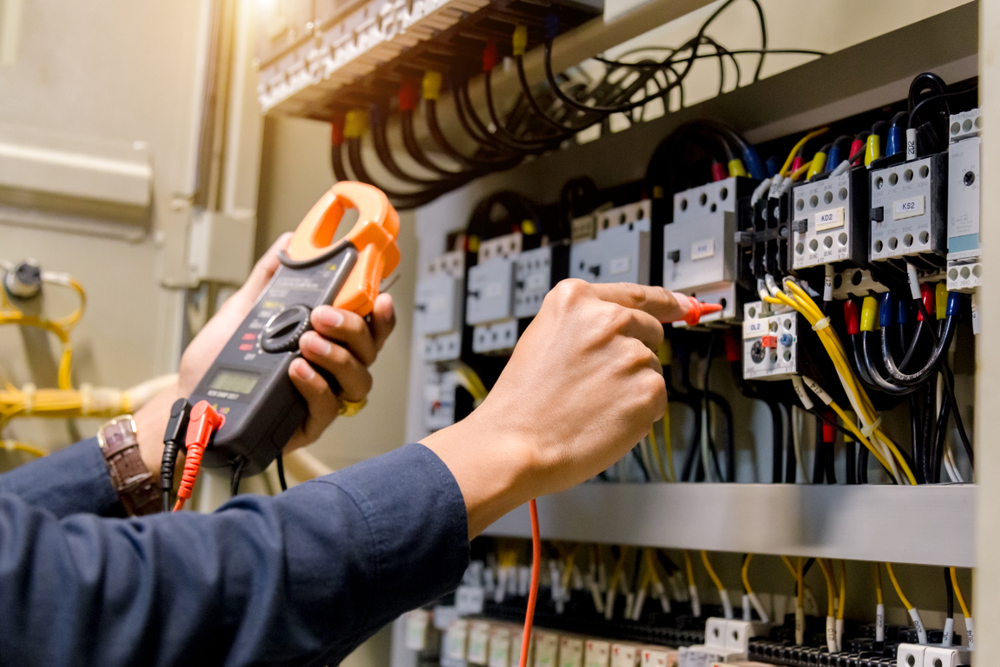

- Always turn off the power at the main circuit breaker before starting any electrical work. Verify that the power is off using a voltage tester.
2. Use Proper Tools and Equipment

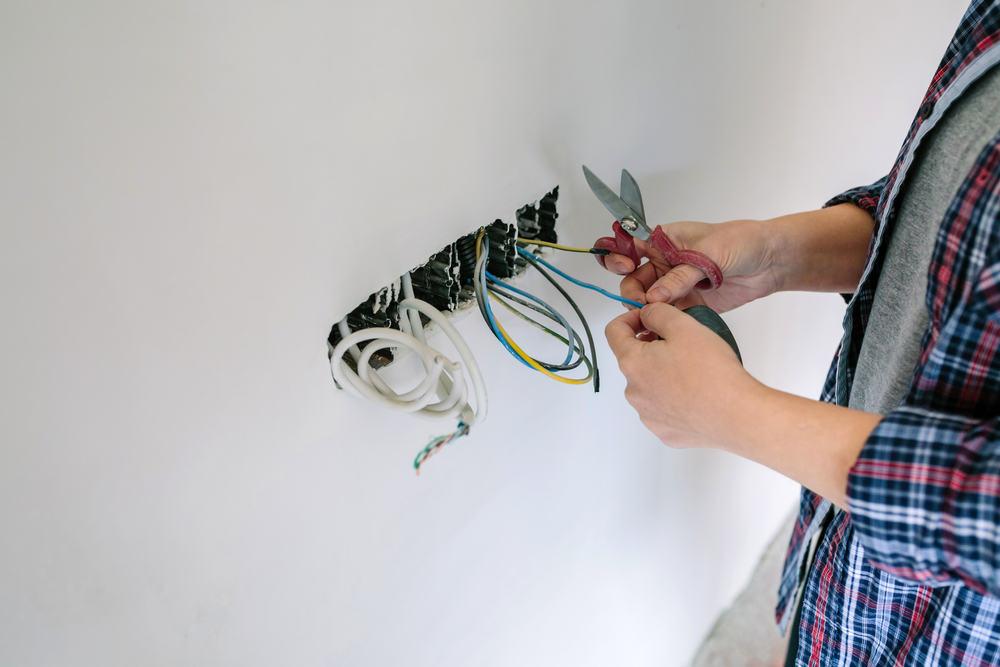

- Ensure you have the right tools, including wire strippers, voltage testers, screwdrivers, pliers, and electrical tape. Use tools with insulated handles for added safety.
3. Follow Wiring Diagrams
- Use wiring diagrams to guide your installations. Properly label circuits and wires to avoid confusion and ensure correct connections.
4. Secure Connections
- Make sure all wire connections are secure and tight. Use wire nuts or connectors approved for the specific type and gauge of wire you are using.
5. Avoid Overloading Circuits
- Ensure that the total current load on any circuit does not exceed its rated capacity. Distribute loads evenly across multiple circuits if necessary.
6. Use Junction Boxes
- All wire splices and connections should be made inside approved junction boxes. This protects the connections and reduces the risk of fire.
7. Proper Grounding
- Ensure all circuits are properly grounded. Ground wires should be connected to grounding screws or bus bars in the service panel and to metal electrical boxes.
8. Respect Building Codes
- Adhere to local building codes and the National Electrical Code (NEC). Obtain necessary permits and inspections to ensure compliance and safety.
Common Home Electrical Projects
1. Adding an Outlet
- Use 12 AWG wire for a 20-amp circuit or 14 AWG wire for a 15-amp circuit.
- Ensure the outlet box is securely mounted and the wires are properly connected to the outlet terminals.
2. Installing a Light Fixture
- Match the wire gauge to the circuit. Most lighting circuits use 14 AWG wire.
- Connect the black (hot) wire to the fixture’s hot wire, the white (neutral) wire to the fixture’s neutral wire, and the ground wire to the fixture’s ground screw.
3. Replacing a Switch
- Use 14 AWG or 12 AWG wire, depending on the circuit rating.
- Ensure the switch is rated for the circuit’s amperage and voltage. Connect the wires to the switch terminals securely.
4. Running a New Circuit
- Calculate the load to determine the appropriate wire gauge and breaker size.
- Run the wire from the service panel to the desired location, securing it along the way and making connections in junction boxes.
Troubleshooting Common Issues
1. Flickering Lights
- Could indicate a loose connection, overloaded circuit, or faulty light fixture. Check and secure all connections, and ensure the circuit is not overloaded.
2. Tripped Breakers
- Frequent tripping may indicate an overloaded circuit, short circuit, or ground fault. Identify and correct the cause before resetting the breaker.
3. Dead Outlets
- Could be due to a tripped GFCI, loose connection, or damaged outlet. Check and reset GFCI outlets, secure connections, or replace the outlet if necessary.
Final Tips
- Regular Maintenance: Periodically inspect your home’s electrical system for signs of wear or damage. Replace frayed wires and outdated components.
- Professional Help: When in doubt or for complex projects, hire a licensed electrician. Electrical work can be dangerous, and professional expertise ensures safety and code compliance.
- Documentation: Keep records of all electrical work done in your home, including wiring diagrams, circuit labels, and permit information. This is helpful for future maintenance and when selling your home.
- By following these guidelines and ensuring proper wire selection and installation, you can complete your home electrical projects safely and effectively.
