Electrical Outlet Wiring Explained: Step-by-Step Guide

Wiring an electrical outlet is a fundamental skill for home improvement and repairs. This step-by-step guide will walk you through the process to ensure safety and proper function.

Tools and Materials Needed

  1. Tools:
    • Voltage tester
    • Screwdrivers (flathead and Phillips)
    • Wire strippers
    • Pliers
    • Utility knife
    • Electrical tape
  2. Materials:
    • Electrical outlet
    • Outlet cover plate
    • Electrical box (if not already installed)
    • Wire nuts
    • Electrical wiring (typically 12 or 14 gauge)

Safety Precautions

  1. Turn Off Power: Locate your home’s circuit breaker panel and turn off the breaker that controls the outlet you are working on. Use a voltage tester to confirm that the power is off.
  2. Use Proper Tools: Ensure all tools and materials are rated for electrical work.
  3. Follow Codes: Familiarize yourself with local electrical codes and regulations.

Step-by-Step Guide

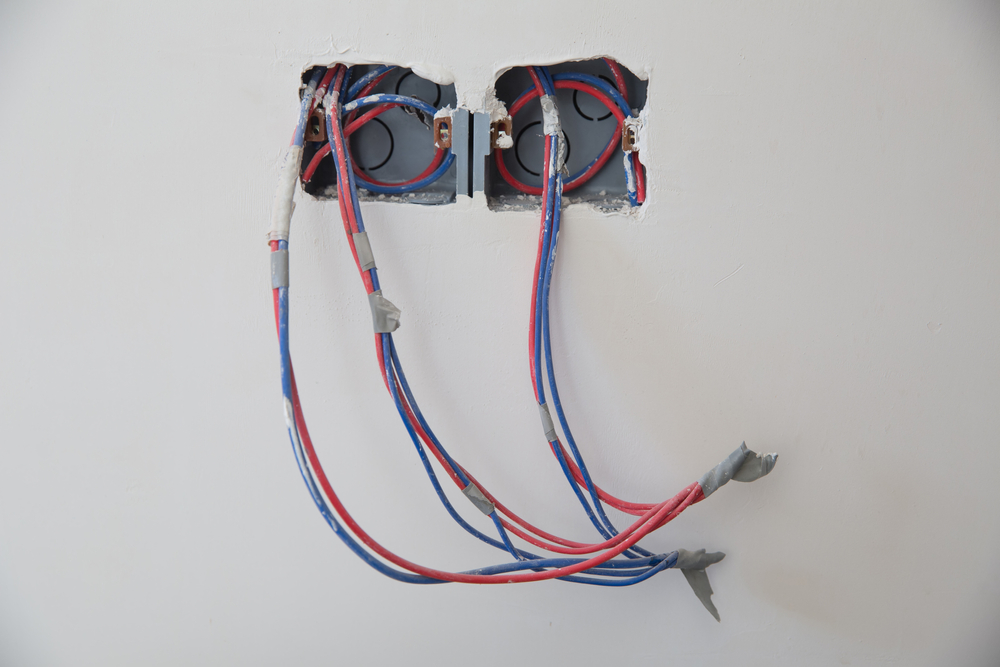

Step 1: Prepare the Wiring

  1. Remove the Old Outlet:
    • Use a screwdriver to remove the cover plate.
    • Unscrew the outlet from the electrical box.
    • Pull the outlet out gently, exposing the wiring.
    • Use a voltage tester to ensure no power is running through the wires.
    • Disconnect the wires from the old outlet by loosening the terminal screws.
  2. Strip the Wires:
    • Use wire strippers to remove about 1/2 inch of insulation from the ends of the wires.
    • There should be three types of wires: black (hot), white (neutral), and green or bare (ground).

Step 2: Connect the New Outlet

  1. Attach the Ground Wire:
    • Connect the green or bare ground wire to the green screw on the outlet. Tighten the screw securely.
  2. Connect the Neutral Wire:
    • Connect the white (neutral) wire to the silver screw on the outlet. Ensure the wire is wrapped clockwise around the screw for a secure connection, then tighten the screw.
  3. Connect the Hot Wire:
    • Connect the black (hot) wire to the brass screw on the outlet. Wrap the wire clockwise around the screw and tighten it securely.

Step 3: Install the Outlet

  1. Position the Outlet:
    • Carefully fold the wires back into the electrical box.
    • Align the outlet with the box and secure it with mounting screws.
  2. Attach the Cover Plate:
    • Place the cover plate over the outlet and secure it with the provided screw.

Step 4: Test the Installation

  1. Restore Power:
    • Turn the circuit breaker back on.
    • Use a voltage tester to check that the outlet is receiving power correctly.
  2. Test the Outlet:
    • Plug in a device or use an outlet tester to ensure the outlet is functioning correctly.

Troubleshooting Tips

  • No Power: Double-check that the breaker is on and the wires are connected to the correct terminals.
  • Loose Outlet: Ensure the mounting screws are tight and the outlet is properly secured in the electrical box.
  • Frequent Tripping: This may indicate a short circuit or overload. Consult a professional if you encounter this issue.

Additional Tips and Best Practices

Understanding Outlet Types

  1. Standard Outlets: These are the most common outlets used in homes, typically 120V for standard appliances and devices.
  2. GFCI Outlets: Ground Fault Circuit Interrupter outlets are designed to protect against electrical shock. These are required in areas where water is present, such as kitchens, bathrooms, and outdoors.
  3. AFCI Outlets: Arc Fault Circuit Interrupter outlets protect against electrical fires by detecting dangerous arcing conditions. These are commonly used in bedrooms and living areas.

Wiring Multiple Outlets

  1. Series Wiring (Daisy-Chaining):
    • Connect multiple outlets by running wires from one outlet to the next.
    • Ensure that each outlet is properly wired to maintain consistent power distribution.
    • Use wire nuts to join wires if necessary, and securely fasten all connections.
  2. Parallel Wiring:
    • Run separate wires from each outlet to the main circuit.
    • This method ensures that each outlet operates independently and maintains power if another outlet fails.

Advanced Considerations

  1. Wire Gauge:
    • Use 14-gauge wire for 15-amp circuits.
    • Use 12-gauge wire for 20-amp circuits.
    • Ensure the wire gauge matches the circuit breaker rating.
  2. Box Fill Calculations:
    • Ensure the electrical box has enough space for the wires and devices being installed.
    • Follow local code requirements for box fill capacity to prevent overheating and electrical hazards.
  3. Specialty Outlets:
    • Install USB outlets to provide convenient charging options for devices.
    • Consider smart outlets for enhanced control and automation capabilities.

Common Mistakes to Avoid

  1. Overtightening Screws: This can damage the outlet and create poor connections. Tighten screws securely but not excessively.
  2. Loose Connections: Ensure all wire connections are secure to prevent arcing and overheating.
  3. Incorrect Wiring: Double-check that each wire is connected to the correct terminal (hot to brass, neutral to silver, ground to green).

Maintenance and Inspection

  1. Regular Inspection: Periodically check outlets for signs of wear, damage, or overheating.
  2. Tighten Connections: Loose connections can develop over time. Inspect and tighten connections as needed.
  3. Replace Damaged Outlets: Immediately replace any outlet that shows signs of damage, burning, or wear.

Special Situations and Considerations

Wiring in Different Environments

  1. Outdoor Outlets:
    • Use weather-resistant outlets and covers to protect against moisture and debris.
    • Install GFCI outlets to comply with safety standards.
    • Ensure outdoor wiring is rated for exterior use and properly sealed against the elements.
  2. Kitchens and Bathrooms:
    • Install GFCI outlets to prevent electrical shock in areas exposed to water.
    • Ensure outlets are placed at appropriate heights and distances from water sources as per local codes.
    • Use tamper-resistant outlets to enhance safety, especially in homes with children.
  3. Basements and Garages:
    • Use moisture-resistant outlets and wiring if these areas are prone to dampness.
    • Consider installing GFCI outlets for added safety.
    • Ensure outlets are easily accessible but positioned to avoid damage from heavy equipment or vehicles.

Upgrading Existing Outlets

  1. Replacing Standard Outlets with GFCI:
    • Identify the line (incoming power) and load (outgoing to other devices) wires.
    • Connect the line wires to the line terminals and load wires to the load terminals on the GFCI outlet.
    • Test the GFCI outlet using its test and reset buttons to ensure proper function.
  1. Installing USB Outlets:
    • Follow the same basic steps for wiring a standard outlet.
    • Ensure the outlet box has enough space to accommodate the larger size of USB outlets.
    • Verify that the power rating of the USB outlet matches your circuit capacity.
  2. Smart Outlets:
    • Follow manufacturer instructions for wiring smart outlets.
    • Connect to your home Wi-Fi network and configure using the provided app.
    • Ensure compatibility with your existing smart home ecosystem (e.g., Amazon Alexa, Google Home).
  1. Dealing with Aluminum Wiring
    • Special Considerations:
      • Aluminum wiring, common in older homes, requires special handling due to its different properties compared to copper wiring.
      • Use outlets rated for aluminum wiring (marked CO/ALR).
      • Consider using a pigtail connection with copper wire if CO/ALR outlets are not available.
    • Connection Tips:
      • Apply an antioxidant compound to aluminum wire connections to prevent oxidation.
      • Ensure all connections are tight and secure to prevent arcing.
  1. Professional Help and When to Seek It
    1. Complex Installations:
      • If you’re adding a new circuit or working with complex wiring configurations, consult a licensed electrician.
      • Major renovations, such as rewiring an entire room or home, should always be done by professionals to ensure compliance with codes and safety standards.
    2. Electrical Inspections:
      • After significant electrical work, it’s advisable to have an inspection by a qualified professional.
      • This ensures that all work complies with local codes and standards.
    3. Troubleshooting Persistent Issues:
      • If you encounter recurring issues like frequent breaker trips, flickering lights, or outlets that don’t work, it’s best to seek professional help.
      • These could indicate deeper electrical problems that require expert diagnosis and repair.
