Installing a Ground Fault Circuit Interrupter (GFCI) outlet is a great way to enhance the safety of your electrical system. GFCI outlets help prevent electrical shock by shutting off the power when they detect a ground fault. Here’s a step-by-step guide to installing a GFCI outlet:
Tools and Materials Needed:
- GFCI outlet
- Screwdrivers (flathead and Phillips)
- Wire stripper/cutter
- Voltage tester
- Electrical tape
- Needle-nose pliers (optional)
- Wall plate (if not included with the GFCI outlet)
Safety Precautions:
- Turn Off Power: Before you start, turn off the power at the circuit breaker to the outlet you’re replacing.

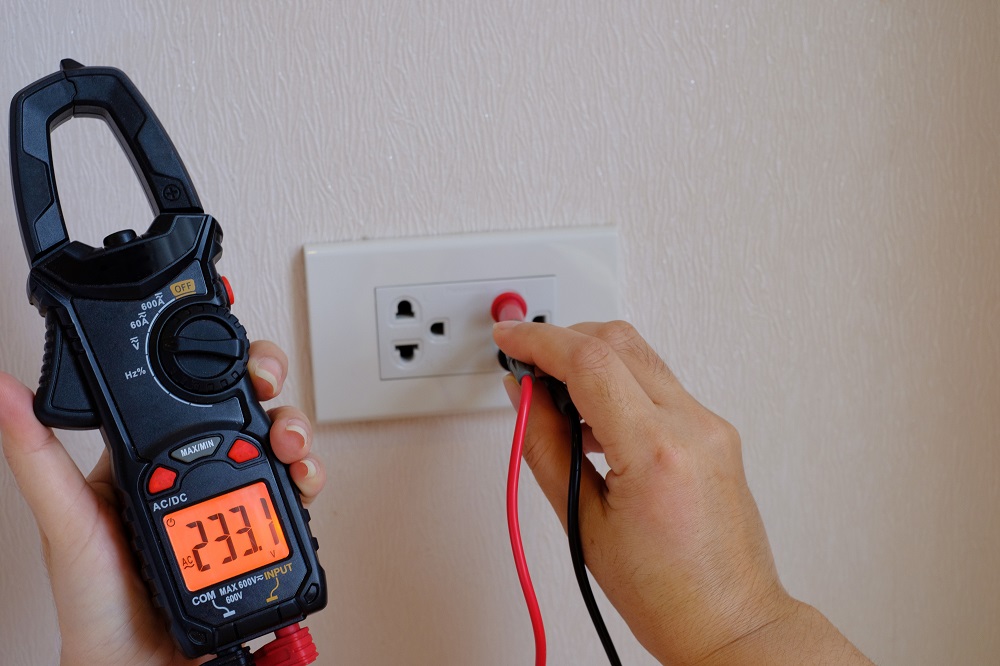

- Test for Power: Use a voltage tester to ensure the power is off. Check both the outlet and the wiring inside the electrical box.
Steps to Install a GFCI Outlet:

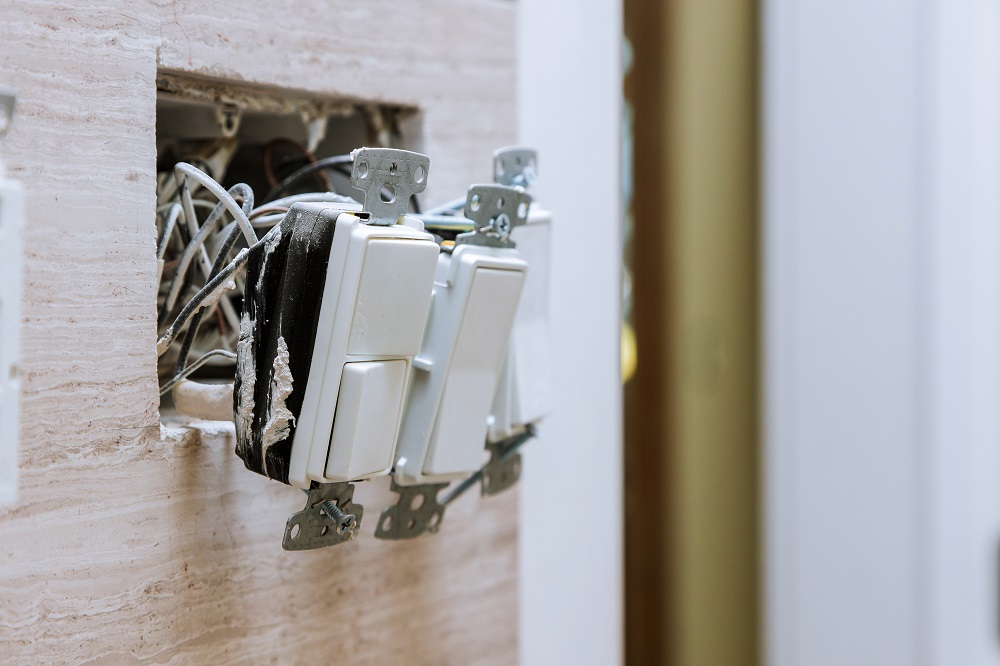

- Remove the Old Outlet:
- Unscrew the wall plate and remove it.
- Unscrew the mounting screws that hold the old outlet in place.
- Gently pull the outlet out of the box without touching any wires.
- Use the voltage tester again to double-check that the wires are not live.

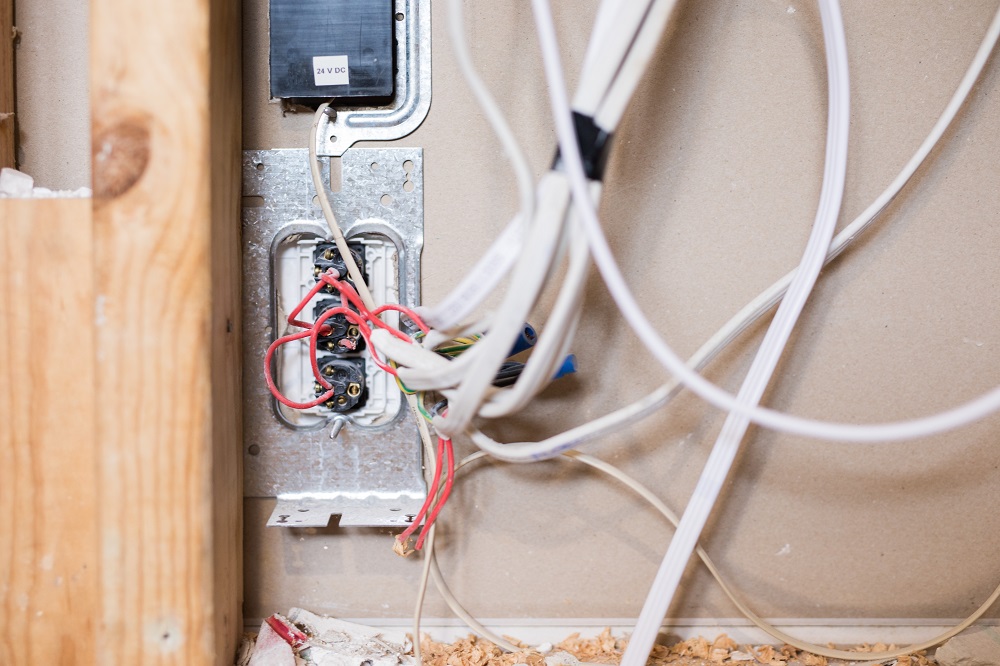

- Identify the Wires:
- There will be two sets of wires connected to the outlet: one set coming from the breaker (line wires) and one set going to other outlets (load wires). The line wires supply power, and the load wires continue the circuit to downstream outlets.
- The line wires usually come from the bottom of the box and the load wires from the top, but this can vary.
- Disconnect the Wires:
- Unscrew the terminal screws on the old outlet to disconnect the wires.
- Straighten the wire ends if they are bent.
- Prepare the GFCI Outlet:
- Look at the back of the GFCI outlet. There will be labels for “Line” and “Load.” The “Line” terminals are where the power comes in, and the “Load” terminals provide GFCI protection to downstream outlets.
- If you don’t need to protect other outlets, only use the “Line” terminals.
- Connect the Wires to the GFCI Outlet:
- Connect the black (hot) wire from the circuit breaker to the brass “Line” terminal.
- Connect the white (neutral) wire from the circuit breaker to the silver “Line” terminal.
- If you are protecting other outlets, connect the black wire from the downstream outlets to the brass “Load” terminal and the white wire to the silver “Load” terminal.
- Connect the ground wire (bare or green) to the green grounding screw on the GFCI outlet.
- Secure the GFCI Outlet:
- Gently fold the wires back into the electrical box.
- Screw the GFCI outlet into the box using the provided mounting screws.
- Attach the wall plate.
- Restore Power and Test:
- Turn the power back on at the circuit breaker.
- Press the “Reset” button on the GFCI outlet.
- Test the GFCI by pressing the “Test” button. The outlet should shut off power and the “Reset” button should pop out.
- Press the “Reset” button again to restore power.
Additional Steps and Considerations:
8. Test the Outlet with a Device:
- Plug a device (like a lamp) into the GFCI outlet to ensure it’s working correctly.
- Turn the device on and then press the “Test” button on the GFCI. The device should turn off immediately.
- Press the “Reset” button to restore power to the outlet and make sure the device turns back on.
9.Label the Outlet:
- Most GFCI outlets come with a label indicating that the outlet is GFCI protected. Place this label on the outlet cover or nearby so that it is clear the outlet has GFCI protection.
10.Check the Downstream Outlets:
- If you have connected downstream outlets to the “Load” terminals of the GFCI outlet, test them as well to ensure they are protected.
- Plug a device into each downstream outlet and press the “Test” button on the GFCI outlet. The device should turn off, indicating the downstream outlets are also protected.
Tips:
- Always double-check wire connections and ensure they are tight and secure.
- If you are unsure about any step, consult with a licensed electrician.
Maintenance Tips:
- Regular Testing: Test your GFCI outlets monthly to ensure they are functioning correctly. Press the “Test” button, and then the “Reset” button to make sure they are working.
- Replacement: If the GFCI outlet does not reset or the “Test” button does not work, replace the outlet. GFCI outlets can wear out over time.
Common Issues and Troubleshooting:
- Outlet Doesn’t Reset:
- Ensure that the power is turned on at the circuit breaker.
- Check that the line and load wires are connected to the correct terminals. Incorrect wiring can prevent the outlet from resetting.
- Inspect for any loose wire connections.
- GFCI Trips Immediately:
- Check for any ground faults or damaged wiring in the circuit.
- Ensure that the load wires are not shorted or touching ground.
- No Power to Downstream Outlets:
- Verify that the load wires are correctly connected to the load terminals on the GFCI outlet.
- Check for continuity in the downstream wiring to ensure there are no breaks or faults.
Advanced Tips for GFCI Installation:
Multiple GFCI Outlets on the Same Circuit:
- If you want to install multiple GFCI outlets on the same circuit, you can do so. Each GFCI outlet will provide protection for its own location and any downstream outlets connected to it.
- However, it is generally more cost-effective to install a single GFCI outlet at the beginning of the circuit, which will protect all downstream outlets.
GFCI Outlet vs. GFCI Circuit Breaker:
- A GFCI outlet is installed at the point of use, whereas a GFCI circuit breaker is installed in the main electrical panel.
- A GFCI circuit breaker provides protection for an entire circuit, including all outlets and devices connected to it.
- Choose a GFCI outlet if you only need to protect a few outlets. Choose a GFCI circuit breaker if you want to protect all outlets on a particular circuit.
Outdoor and Wet Locations:
- GFCI outlets are required in outdoor and wet locations (e.g., bathrooms, kitchens, garages).
- Ensure that outdoor GFCI outlets are installed in weatherproof boxes and covered with weatherproof outlet covers to protect them from moisture and debris.
Understanding GFCI Limitations:
- Nuisance Tripping:
- GFCI outlets can sometimes trip unnecessarily, known as nuisance tripping. This can occur due to power surges, lightning, or certain electronic devices.
- If nuisance tripping occurs frequently, try to identify the cause. It may be helpful to consult with an electrician if the problem persists.
- Aging and Wear:
- GFCI outlets can wear out over time, reducing their effectiveness. Regular testing and periodic replacement (every 5-10 years) are recommended to ensure continued protection.
- Compatibility:
- GFCI outlets may not be compatible with certain types of electrical equipment, such as some appliances with motors or electronics that produce electromagnetic interference.
- If you experience issues with specific devices, consider using a different type of GFCI protection or consult with an electrician.
Final Checks:
- Inspect the Installation:
- Ensure that all connections are secure and that there are no exposed wires.
- Double-check that the GFCI outlet is properly installed and flush with the wall.
- Documentation:
- Keep a record of the installation, including the date and any relevant notes. This can be useful for future reference and maintenance.
- Education:
- Educate household members about the purpose of GFCI outlets and how to test and reset them. This can help ensure that everyone in the home knows how to maintain electrical safety.
By following these steps and tips, you can successfully install and maintain a GFCI outlet in your home, providing enhanced safety against electrical shocks and faults.
