Installing a subpanel can be a crucial part of upgrading or expanding your electrical system. This guide will walk you through the steps to safely and efficiently install a subpanel.
Materials and Tools Needed
- Subpanel
- Circuit breakers
- Electrical conduit and fittings
- Electrical cable (appropriate gauge)
- Grounding bar
- Screws and wall anchors
- Wire nuts
- Electrical tape
- Screwdriver set
- Drill
- Wire stripper
- Voltage tester
- Level
Safety Precautions
- Turn Off the Main Power: Ensure the main breaker is off to cut power to your entire home.
- Use Personal Protective Equipment (PPE): Wear insulated gloves and safety glasses.
- Verify Power is Off: Use a voltage tester to confirm that power is off before starting work.
Step-by-Step Installation
Step 1: Plan the Installation
- Determine Location: Choose a location for your subpanel that is easily accessible and allows for future expansion.
- Calculate Load: Ensure the subpanel can handle the additional load from new circuits.
Step 2: Mount the Subpanel
- Mark and Drill Holes: Mark the spots for mounting the subpanel on the wall. Drill holes for the screws or wall anchors.
- Secure the Subpanel: Mount the subpanel securely to the wall using screws or anchors. Use a level to ensure it is straight.
Step 3: Run the Conduit
- Measure and Cut Conduit: Measure the distance from the main panel to the subpanel and cut the conduit to fit.
- Install Fittings: Attach conduit fittings to the ends of the conduit.
- Secure Conduit: Secure the conduit to the main panel and the subpanel using appropriate fittings.
Step 4: Pull the Cable
- Select Appropriate Cable: Use cable that is appropriately rated for the amperage of your subpanel.
- Pull Cable Through Conduit: Carefully pull the cable through the conduit from the main panel to the subpanel.
- Strip Cable Ends: Strip the ends of the cable to expose the wires.
Step 5: Connect the Wires in the Main Panel
- Turn Off Main Breaker: Ensure the main breaker is off.
- Install New Breaker: Install a double-pole breaker in the main panel.
- Connect Wires to Breaker: Connect the black (hot) wires to the breaker terminals.
- Connect Neutral and Ground Wires: Connect the white (neutral) wire to the neutral bus bar and the bare (ground) wire to the ground bus bar.

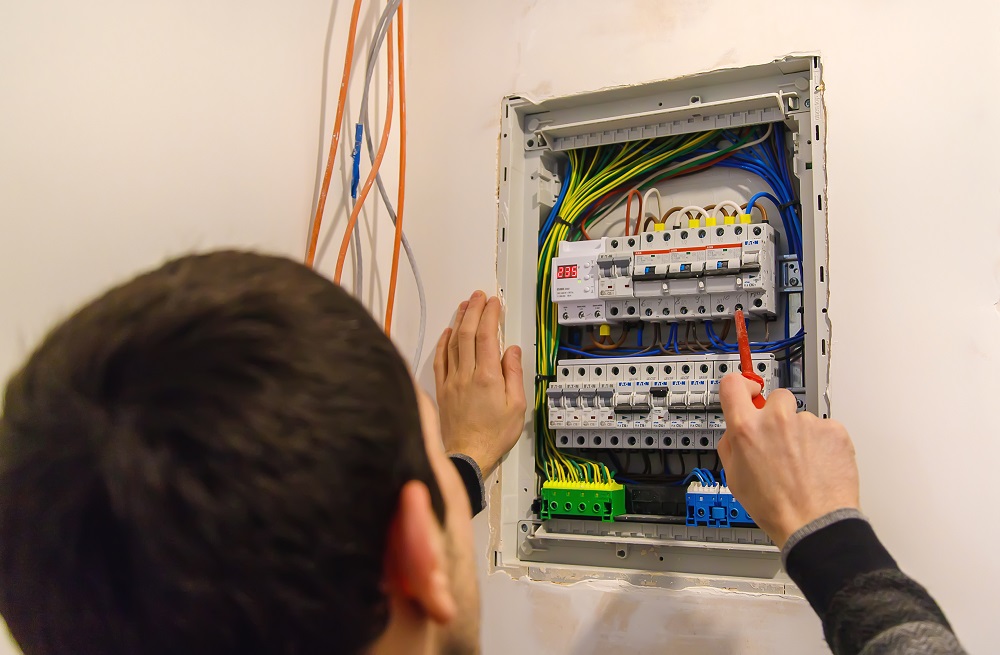

Step 6: Connect the Wires in the Subpanel
- Turn Off Subpanel Main Breaker: Ensure the subpanel main breaker is off.
- Connect Hot Wires: Connect the black (hot) wires to the main lugs in the subpanel.
- Connect Neutral and Ground Wires: Connect the white (neutral) wire to the neutral bus bar and the bare (ground) wire to the ground bar.
- Install Grounding Bar: If not pre-installed, mount the grounding bar and connect the ground wire.
Step 7: Install Circuit Breakers in the Subpanel
- Insert Breakers: Install the required breakers in the subpanel.
- Connect Circuits: Connect the branch circuit wires to the breakers, neutral bus bar, and ground bar as needed.
Step 8: Final Checks and Power On
- Check Connections: Double-check all connections for tightness and correctness.
- Install Cover Panels: Install the cover panels on both the main panel and the subpanel.
- Turn On Power: Turn on the main breaker and then the subpanel breaker.
- Test Circuits: Use a voltage tester to ensure all circuits are functioning correctly.
Troubleshooting Tips
- Tripped Breaker: If a breaker trips, check for short circuits or overloaded circuits.
- No Power: Verify all connections and ensure breakers are properly seated.
- Voltage Irregularities: Use a voltage tester to check for proper voltage at various points.
Additional Considerations for Installing a Subpanel
Load Calculation and Panel Sizing
Before installing a subpanel, it’s essential to ensure it can handle the electrical load you intend to add. Here’s how to perform a basic load calculation:
- List All Devices and Appliances: Note the wattage or amperage of each device that will be connected to the subpanel.
- Calculate Total Load: Sum the total wattage or amperage of all devices.
- Convert Watts to Amps: If your devices list wattage, convert this to amperage using the formula: Amps = Watts / Volts.
- Choose Subpanel Size: Select a subpanel that exceeds the total calculated load to provide a margin of safety and allow for future expansion.
Choosing the Right Cable Size
The gauge of the cable you need depends on the amperage of your subpanel and the distance between the main panel and the subpanel. Here’s a quick guide:
- Up to 50 Amps: Use #6 AWG wire.
- 60 to 100 Amps: Use #4 AWG wire.
- Over 100 Amps: Use #2 AWG wire or larger, depending on the specific requirements and distance.
Grounding and Bonding
Proper grounding and bonding are critical for safety and compliance with electrical codes:
- Separate Neutral and Ground: In the subpanel, the neutral bus bar and the ground bar should be separate. Do not bond the neutral bar to the panel’s metal case as you would in the main panel.
- Install Grounding Bar: Ensure a grounding bar is installed in the subpanel if it doesn’t come with one.
- Bonding Screw: Remove the bonding screw or strap that connects the neutral bar to the subpanel’s case if it’s present.
Permits and Inspections
Many localities require permits and inspections for electrical work. Check with your local building department to determine if you need a permit and to schedule an inspection after the installation is complete. This ensures the work meets local codes and safety standards.
Tips for a Neat Installation
- Label Circuits: Clearly label each breaker in the subpanel to indicate which circuit it controls.
- Organize Wires: Use wire clamps and cable ties to keep wires organized and avoid tangling.
- Use Conduit: Where possible, run wires in conduit for added protection and a cleaner appearance.
Hiring a Professional
While many homeowners can install a subpanel with careful planning and adherence to safety practices, some situations may require a professional electrician, such as:
- Complex Installations: If your electrical system is complex or you need to run large cables over long distances.
- Upgrading Service: If your project involves upgrading your main service panel to accommodate the subpanel.
- Compliance and Safety: If you are unsure about local codes or the safety aspects of the installation.
Frequently Asked Questions
Q: How far can a subpanel be located from the main panel?
A: The distance a subpanel can be from the main panel is generally limited by the voltage drop, which should not exceed 3%. For most residential installations, this is around 100 feet. However, using larger gauge wire can help minimize voltage drop over longer distances.
Q: Can I install a subpanel outdoors?
A: Yes, but you must use a subpanel rated for outdoor use and ensure it is properly weatherproofed. Use weather-resistant conduit and fittings for all wiring leading to the subpanel.
Q: Do I need a main breaker in the subpanel?
A: It depends on local code requirements and the layout of your installation. Some jurisdictions require a main breaker in the subpanel for a quick disconnect, while others do not if the subpanel is in the same building.
Q: Can I use the same neutral and ground wire for the subpanel?
A: No, the neutral and ground must be separated in a subpanel. The ground should connect to the grounding bar, and the neutral should connect to the neutral bar without bonding to the panel’s metal case.
By following this comprehensive guide and adhering to local codes and safety standards, you can successfully install a subpanel to expand your electrical system’s capacity. If at any point you feel uncertain or encounter difficulties, do not hesitate to consult with or hire a professional electrician.
