Installing an electrical outlet can be a straightforward DIY project if you follow the correct steps and take necessary safety precautions. Here’s a step-by-step guide to help you through the process:
Materials and Tools Needed:
- New electrical outlet (receptacle)
- Electrical box
- Wire stripper
- Screwdriver (flathead and Phillips)
- Voltage tester
- Wire nuts
- Electrical tape
- Needle-nose pliers
- Romex cable (if running new wire)
Safety First:
- Turn Off Power: Locate your home’s electrical panel and turn off the circuit breaker that powers the outlet you’ll be working on. Use a voltage tester to confirm that the power is off at the outlet.
Step-by-Step Guide:
1. Remove the Old Outlet (if applicable):
- Unscrew the cover plate and remove it.
- Unscrew the mounting screws on the outlet and pull it out of the electrical box.
- Use a voltage tester to ensure no power is running to the wires.
- Carefully disconnect the wires from the old outlet. Note the placement of the wires as you’ll need to connect the new outlet in the same way.
2. Prepare the New Outlet:
- Check the new outlet to ensure it matches the amperage and voltage of the old one (typically 15 or 20 amps for standard household outlets).
- Strip about 1/2 inch of insulation from the ends of the wires if needed.

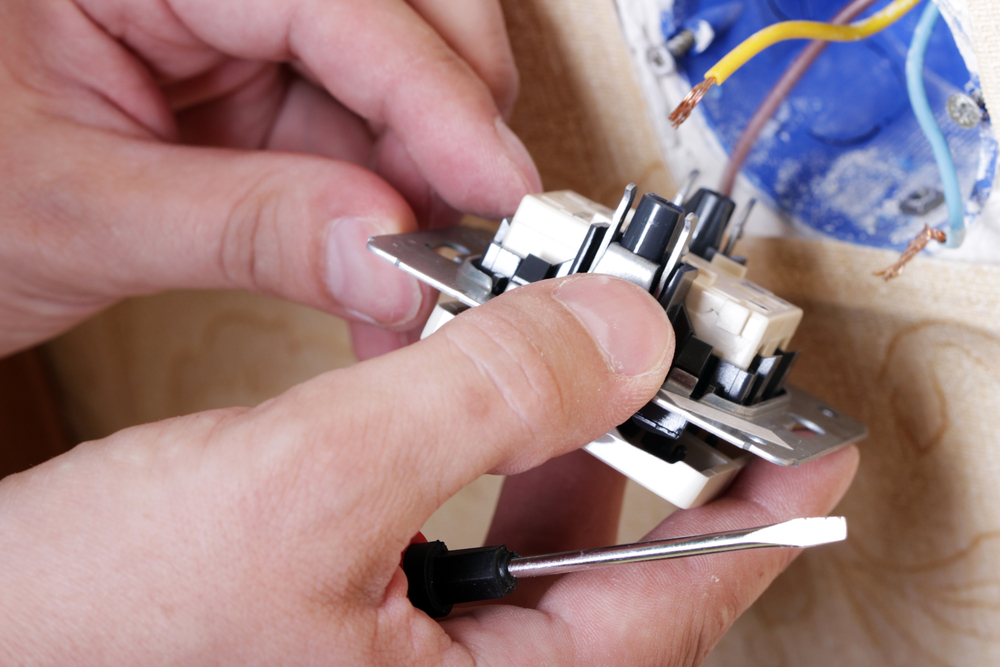

3. Install the New Outlet:
- Connect the Wires:
- Black (Hot) Wire: Connect to the brass-colored screw.
- White (Neutral) Wire: Connect to the silver-colored screw.
- Green or Bare (Ground) Wire: Connect to the green screw.
- Ensure all connections are tight and the wires are wrapped around the screws in a clockwise direction to ensure they stay secure when tightened.

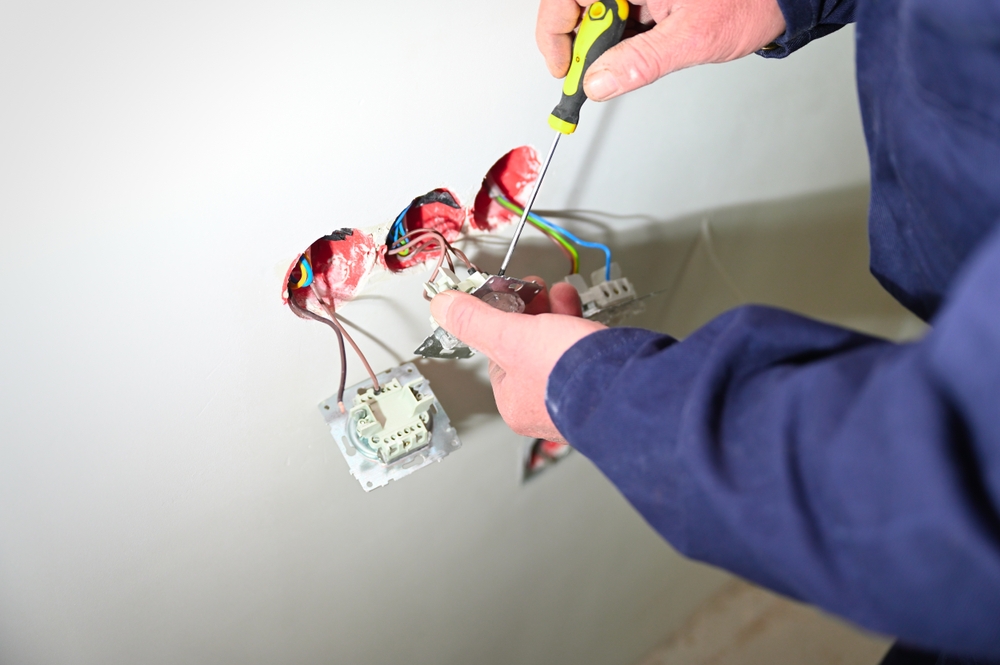

- Insert the Wires and Outlet:
- Gently fold the wires back into the electrical box.
- Screw the new outlet into the electrical box using the mounting screws.
4. Test the Installation:
- Before attaching the cover plate, turn the power back on at the circuit breaker.
- Use a voltage tester to ensure the outlet is working correctly.
- If everything is working, turn off the power again and proceed to the next step.
5. Attach the Cover Plate:
- Place the cover plate over the outlet and secure it with the screw provided.
- Turn the power back on at the circuit breaker.
Final Tips:
- Double-check Connections: Ensure all wires are connected correctly and securely.
- Avoid Overloading: Do not overload the outlet with too many devices.
- Professional Help: If you encounter any problems or are unsure about any steps, consider hiring a licensed electrician.
Running New Wire (if necessary):
If you need to run a new wire to install an outlet in a location where there wasn’t one before, the process is a bit more involved. Here are the additional steps:
1. Plan the Route:
- Determine the path from the power source (circuit breaker) to the new outlet location.
- Plan to route the wire through walls, attics, or crawl spaces as necessary.
2. Drill Holes:
- Drill holes in the wall studs or floor joists along the planned path for the Romex cable. Ensure the holes are large enough for the cable but not so large that they weaken the structural integrity of the studs or joists.
3. Run the Cable:
- Feed the Romex cable from the power source to the new outlet location. Pull enough cable so that you have at least six inches protruding from the electrical box.
4. Install the Electrical Box:
- Cut a hole in the drywall at the new outlet location, ensuring it’s between two studs.
- Secure the electrical box to the wall using the appropriate screws or mounting brackets.
5. Connect to the Power Source:
- Turn off the power at the main circuit breaker.
- Connect the new Romex cable to the circuit breaker panel:
- Connect the black (hot) wire to an available breaker.
- Connect the white (neutral) wire to the neutral bus bar.
- Connect the bare (ground) wire to the ground bus bar.
- Ensure all connections are secure and neat to avoid any potential issues.
6. Connect the New Outlet:
- Follow the same steps for connecting the wires to the outlet as mentioned earlier.
- Mount the outlet into the electrical box and secure it with screws.
Additional Tips for Running New Wires:
- Code Compliance: Ensure that all work complies with local electrical codes. This might include requirements for wire size, breaker size, and proper use of junction boxes.
- Avoid Sharp Bends: When running the cable, avoid sharp bends as they can damage the wire.
- Secure the Cable: Use cable staples to secure the Romex cable to the studs or joists every 4.5 feet and within 12 inches of the electrical box.
- Use a Junction Box: If you need to splice wires or make connections in locations other than the outlet box, always use a junction box. Never make connections outside of a box.
Final Checks:
- Inspect Work: Double-check all connections and ensure no wires are exposed.
- Test the Outlet: After turning the power back on, use a receptacle tester to verify that the outlet is wired correctly.
- Cover Plates: Install cover plates for all outlets and junction boxes to protect the wiring.
Common Mistakes to Avoid:
- Not Turning Off Power: Always turn off power at the breaker before starting any electrical work.
- Loose Connections: Ensure all wire connections are tight and secure to avoid arcing, which can cause fires.
- Overloaded Circuits: Avoid adding too many outlets or high-power devices to a single circuit to prevent overloads.
- Incorrect Wire Sizes: Use the correct wire gauge for the circuit. Typically, 14-gauge wire is used for 15-amp circuits and 12-gauge wire for 20-amp circuits.
- Ignoring Code Requirements: Always follow local electrical codes and regulations to ensure safety and compliance.
By following these guidelines, you can safely and effectively install a new electrical outlet, whether you’re replacing an existing one or adding a new one. Remember, if at any point you feel unsure or unsafe, it’s best to consult or hire a professional electrician.
