Wiring an electrical outlet can be a straightforward task if you follow the proper steps and safety precautions. Here’s a step-by-step guide for beginners:
Tools and Materials Needed:
- Tools:
- Wire stripper
- Screwdriver (flat-head and Phillips)
- Voltage tester or multimeter
- Needle-nose pliers
- Utility knife
- Materials:
- Electrical outlet
- Electrical box
- Wire nuts
- Electrical tape
- Romex wire (usually 12/2 or 14/2 with ground, depending on the circuit)
- Outlet cover plate
Safety Precautions:
- Turn off the power: Before starting, turn off the power to the circuit you’ll be working on at the main circuit breaker panel.
- Verify power is off: Use a voltage tester or multimeter to ensure there’s no power at the outlet or wires you’ll be working on.
- Work in a dry environment: Ensure the area is dry and you are standing on a non-conductive surface.
Step-by-Step Instructions:
1. Turn Off Power:
- Go to your main circuit breaker panel and turn off the breaker that controls the circuit you’ll be working on. Label it if necessary.
2. Test for Power:
- Use a voltage tester to double-check that the power is off at the outlet.
3. Prepare the Electrical Box:
- Install the electrical box if it’s not already in place. Make sure it’s securely mounted to a stud or wall.
4. Prepare the Wires:
- Strip about 6-8 inches of the outer sheath from the Romex wire using a utility knife.
- Strip about 3/4 inch of insulation from the ends of the black (hot), white (neutral), and bare copper (ground) wires using a wire stripper.

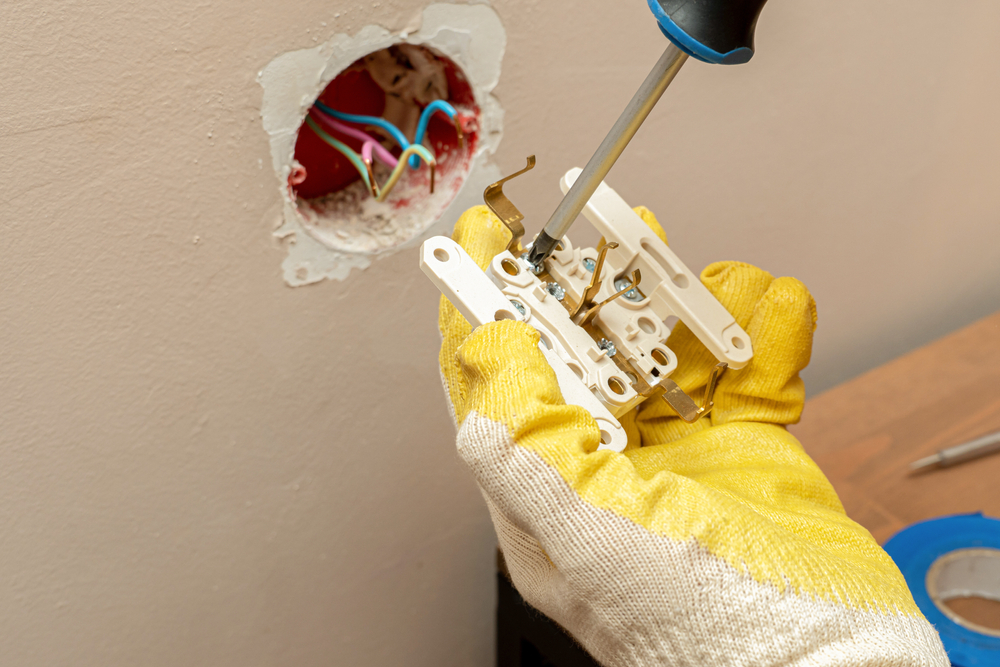

5. Connect the Ground Wire:
- Attach the bare copper ground wire to the green ground screw on the outlet. Loop the wire clockwise around the screw and tighten it firmly.
6. Connect the Neutral Wire:
- Attach the white neutral wire to the silver screw on the outlet. Loop the wire clockwise around the screw and tighten it securely.
7. Connect the Hot Wire:
- Attach the black hot wire to the brass screw on the outlet. Loop the wire clockwise around the screw and tighten it securely.
8. Secure the Wires:
- Push the connected wires back into the electrical box carefully. Ensure there are no sharp bends or kinks in the wires.
9. Attach the Outlet to the Box:
- Secure the outlet to the electrical box using the screws provided. Ensure it is straight and flush with the wall.
10. Install the Cover Plate:
- Attach the cover plate to the outlet. Use the screws provided and ensure it is aligned properly.
11. Turn On Power and Test:
- Turn the circuit breaker back on at the main panel.
- Test the outlet with a voltage tester or plug in a lamp or device to ensure it’s working correctly.
Additional Tips:
- Use wire nuts and electrical tape: If you need to connect multiple wires together, use wire nuts and secure them with electrical tape for added safety.
Use the correct gauge wire: Ensure you’re using the appropriate gauge wire for the circuit (usually 12-gauge for 20-amp circuits and 14-gauge for 15-amp circuits).
Additional Safety Tips:
- Double-check connections: Ensure all wire connections are tight and secure. Loose connections can cause electrical arcing and potential fire hazards.
- Use proper tools: Using the right tools for the job not only makes the work easier but also safer. For example, a good-quality wire stripper will cleanly strip insulation without damaging the wire.
- Understand wire colors: Standard color codes are important for identifying wires:
- Black or Red: Hot (live) wire
- White: Neutral wire
- Bare or Green: Ground wire
- Avoid overloading the circuit: Make sure the outlet is appropriate for the circuit’s amperage. For instance, don’t use a 20-amp outlet on a 15-amp circuit.
Advanced Tips:
- Using GFCI Outlets: In areas prone to moisture (like kitchens, bathrooms, and outdoors), use Ground Fault Circuit Interrupter (GFCI) outlets for added safety. These outlets help prevent electric shock by cutting off power if an imbalance is detected.
- Testing GFCI Outlets: After installation, test the GFCI outlet using its built-in test button to ensure it’s functioning correctly.
- Labeling Wires: If you’re working with multiple wires, label them with tape to avoid confusion. This is especially useful if you’re interrupted and need to resume the project later.
Troubleshooting Common Issues:
- Outlet Not Working: If the outlet doesn’t work after installation, recheck your connections. Make sure the wires are securely attached to the correct screws.
- Tripped Breaker: If the breaker trips when you turn it back on, there may be a short circuit. Double-check all connections and ensure no wires are touching each other or the box.
- Loose Outlet: If the outlet feels loose in the box, use outlet spacers or adjust the mounting screws to ensure it’s secure and doesn’t move when plugging or unplugging devices.
Future Considerations:
- Inspect Regularly: Periodically inspect your outlets for signs of wear or damage. Replace any that show signs of cracking, discoloration, or loose connections.
- Upgrade When Needed: Consider upgrading old outlets to newer, safer models. For example, tamper-resistant outlets are designed to prevent children from inserting objects into them.
Handling Specific Scenarios:
Wiring Multiple Outlets in Series:
- Determine Circuit Load: Calculate the total load to ensure the circuit can handle additional outlets.
- Run Cable: From the existing outlet, run a new length of Romex cable to the new outlet location.
- Connect Wires: At the existing outlet, connect the new cable’s wires to the appropriate terminals (black to brass, white to silver, and ground to green). Repeat the process at the new outlet.
Installing a Split Receptacle:
- Understand Split Receptacles: A split receptacle allows one outlet to be always on while the other is controlled by a switch.
- Remove Tab: Break the connecting tab between the two brass screws on the side of the outlet.
- Wiring: Connect the constant hot wire to one brass screw, the switched hot wire to the other brass screw, and the neutral wire to the silver screw. Connect the ground wire to the green screw.
Advanced Troubleshooting:
Outlet Has Power but Doesn’t Work:
- Check for Loose Connections: Ensure all wires are securely connected.
- Test the Outlet: Use a multimeter to test the voltage. If it reads zero or significantly lower than expected, the outlet might be faulty.
- Inspect the Breaker: Sometimes the breaker might seem on but is slightly tripped. Turn it off and then back on.
Outlet Sparks When Plugging In:
- Turn Off Power: Immediately turn off the power at the breaker.
- Inspect for Damage: Look for damaged wires or a faulty outlet.
- Replace Outlet: If the outlet shows any signs of damage, replace it.
Advanced Wiring Techniques:
Installing a USB Outlet:
- Choose the Right Outlet: Select a USB outlet that fits your needs (with one or more USB ports).
- Wiring: The wiring is similar to a standard outlet (black to brass, white to silver, and ground to green). Follow the manufacturer’s instructions for specific details.
Wiring a 240V Outlet:
- Understand the Circuit: A 240V outlet requires two hot wires (usually red and black), a neutral wire, and a ground wire.
- Use Appropriate Cable: Use 10-gauge wire for 30-amp circuits or 8-gauge for 40-amp circuits.
- Install Double-Pole Breaker: At the panel, install a double-pole breaker corresponding to the circuit’s amperage.
- Wiring the Outlet: Connect the two hot wires to the brass terminals, the neutral wire to the silver terminal, and the ground wire to the green terminal.
Tips for Safe and Effective Wiring:
Organizing Wires in the Box:
- Neatly Arrange Wires: Keep wires organized inside the box. Use cable ties if necessary.
- Leave Enough Slack: Ensure there is enough slack to comfortably connect the wires but not so much that they crowd the box.
Using Wire Nuts:
- Select the Right Size: Use wire nuts that are appropriate for the number and gauge of wires you’re connecting.
- Twist Wires Together: Before screwing on the wire nut, twist the wires together clockwise.
- Secure with Tape: For extra security, wrap the wire nut and exposed wires with electrical tape.
Planning for Future Upgrades:
Anticipate Future Needs:
- Consider Additional Outlets: Plan for the possibility of needing more outlets in high-use areas.
- Upgrade to Modern Outlets: Consider installing outlets with built-in USB ports or smart outlets that can be controlled via Wi-Fi.
Stay Updated with Code Changes:
- Follow Local Codes: Electrical codes can change. Make sure your work complies with the latest local building codes.
GFCI and AFCI Requirements: Be aware of where Ground Fault Circuit Interrupters (GFCI) and Arc Fault Circuit Interrupters (AFCI) are required.
Consulting a Professional:
If you encounter any of the following situations, it’s best to call a licensed electrician:
- Complex Wiring Scenarios: Such as multi-way switches, subpanels, or service upgrades.
- Aluminum Wiring: Special connectors and techniques are required.
Uncertainty: If you’re ever unsure about any aspect of the wiring process.
By following these steps, you can safely and effectively wire a new electrical outlet. If you have any doubts or concerns, don’t hesitate to consult a licensed electrician.
