Understanding Romex Wire: Uses, Types, and Installation Tips

Romex wire, a popular brand of non-metallic (NM) sheathed cable, is commonly used in residential electrical wiring. This guide will provide an overview of its uses, types, and essential installation tips.

What is Romex Wire?

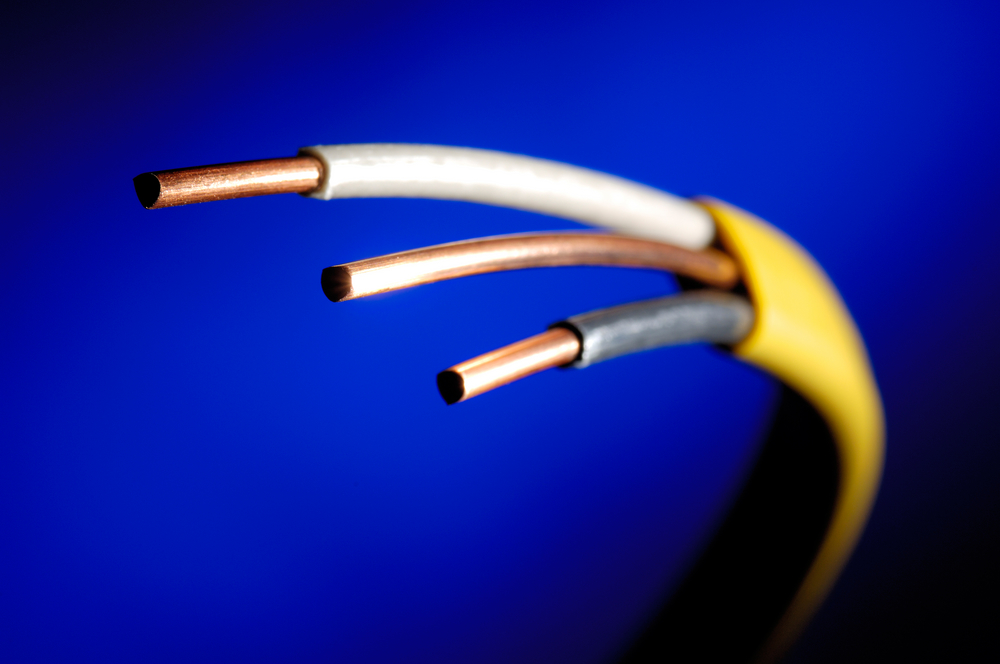

Romex wire is a type of electrical cable that consists of multiple insulated conductors encased in a flexible plastic sheath. It is widely used for indoor wiring in residential buildings. The term “Romex” is a trademarked name by Southwire Company, but it is often used generically to refer to NM cable.

Uses of Romex Wire

Residential Wiring: Romex is the go-to choice for wiring electrical outlets, switches, lighting fixtures, and other household circuits.
Branch Circuits: It is used to create branch circuits from the main service panel to various points in the house.
Appliance Wiring: Certain types of Romex wire are designed to handle the higher current loads required by major appliances.

Types of Romex Wire

Romex wire comes in various types, each suited for different applications:

Romex NM-B: The most common type used for general indoor wiring. It typically has two or more conductors and a ground wire.
Romex UF-B: Designed for underground use and direct burial. It is more resistant to moisture and sunlight.
Romex NM-C: Similar to NM-B but with additional protection against physical damage, often used in commercial settings.

Understanding Wire Gauges

Romex wire is available in different gauges (sizes), each suitable for specific current loads:

14-gauge: Used for light fixtures and outlets on a 15-amp circuit.
12-gauge: Suitable for general-purpose outlets and appliances on a 20-amp circuit.
10-gauge: Used for larger appliances like water heaters and air conditioners on a 30-amp circuit.

8-gauge and larger: Used for high-power appliances and subpanels.

Installation Tips for Romex Wire

Safety First: Always turn off the power at the breaker panel before starting any electrical work.
Proper Tools: Use the right tools such as wire strippers, pliers, and voltage testers.
Stapling: Secure the cable with staples or clamps to avoid sagging and potential damage. Avoid overtightening, which can damage the cable.
Avoid Sharp Edges: Prevent running the cable over sharp edges or through metal studs without proper grommets.
Code Compliance: Follow local building codes and the National Electrical Code (NEC) for proper installation practices.
Box Fill: Ensure electrical boxes are appropriately sized to accommodate the number of wires entering them. Overcrowded boxes can cause overheating and are a fire hazard.
Drilling Holes: When running Romex through studs or joists, drill holes in the center to protect the cable from nails or screws. Use protective plates if necessary.
Support: Support the cable every 4.5 feet and within 12 inches of each box or fitting.
Avoid Exposed Runs: Do not run Romex in exposed locations where it can be easily damaged. Use conduit if necessary.

Common Mistakes to Avoid

Overloading Circuits: Ensure the wire gauge matches the circuit breaker rating to prevent overheating and fire hazards.
Improper Splicing: Use proper junction boxes for all splices, and never leave splices exposed.
Exceeding Box Fill Limits: Calculate the number of conductors to avoid exceeding the box fill capacity.
Inadequate Grouding: Ensure all ground wires are properly connected and bonded.

Advanced Installation Tips for Romex Wire

While basic installation tips cover most scenarios, there are additional considerations for more complex installations or to ensure optimal performance and safety:

Avoid Overheating: Ensure that Romex wire is not in prolonged contact with insulation materials that can cause overheating. Use thermal insulation with a lower thermal resistance (R-value) or install cable spacers if necessary.
Voltage Drop: For long runs, consider the potential for voltage drop. If the run exceeds 100 feet, you may need to use a thicker gauge wire to maintain proper voltage levels at the end of the circuit.
Bend Radius: Avoid sharp bends in the cable. Maintain a minimum bend radius of at least five times the diameter of the cable to prevent internal damage.
Multi-Wire Branch Circuits: When running multi-wire branch circuits (two hot wires sharing a neutral), ensure both hot wires are on opposite phases (different circuit breakers) to balance the load and avoid overloading the neutral.
Derating: When bundling multiple Romex cables together or running them through conduit, consider derating factors. Too many cables in a single bundle can lead to excessive heat buildup and reduced current-carrying capacity.

Troubleshooting Common Issues with Romex Wire

Loose Connections: Regularly check for and tighten loose connections, which can cause arcing and fires. Use wire nuts or push-in connectors rated for the wire gauge and number of connections.
Damaged Insulation: Inspect the insulation for nicks, cuts, or abrasions. Repair any damage with electrical tape or replace the damaged section of cable.
Moisture Exposure: In damp or wet areas, use UF-B or other moisture-resistant cables. Ensure that connections and terminations are in weatherproof boxes and properly sealed.
Circuit Overloads: If circuit breakers frequently trip, reassess the load distribution. Avoid connecting too many high-wattage devices to a single circuit.

Upgrading and Expanding Romex Wiring

Adding Outlets: When adding outlets, extend from an existing outlet using the same gauge Romex wire. Ensure the additional outlets do not overload the circuit.
Upgrading Circuits: When upgrading from a 15-amp to a 20-amp circuit, replace 14-gauge wire with 12-gauge wire. Ensure the entire circuit, including outlets and breakers, is rated for the higher amperage.
Installing GFCI and AFCI Protection: Install Ground Fault Circuit Interrupters (GFCIs) in wet areas (bathrooms, kitchens) and Arc Fault Circuit Interrupters (AFCIs) in living areas to enhance safety.

Romex Wire Alternatives and When to Use Them

While Romex wire is versatile and widely used, there are scenarios where alternative wiring methods are more appropriate:

Metal Clad (MC) Cable: For commercial or industrial settings, or where added protection is needed, MC cable with a metal sheath is preferred.
Flexible Metal Conduit (FMC): Use FMC in situations requiring flexibility and protection against physical damage, such as in basements and garages.
Rigid or EMT Conduit: In exposed locations, especially outdoors or in unfinished spaces, using rigid or Electrical Metallic Tubing (EMT) conduit provides superior protection.
